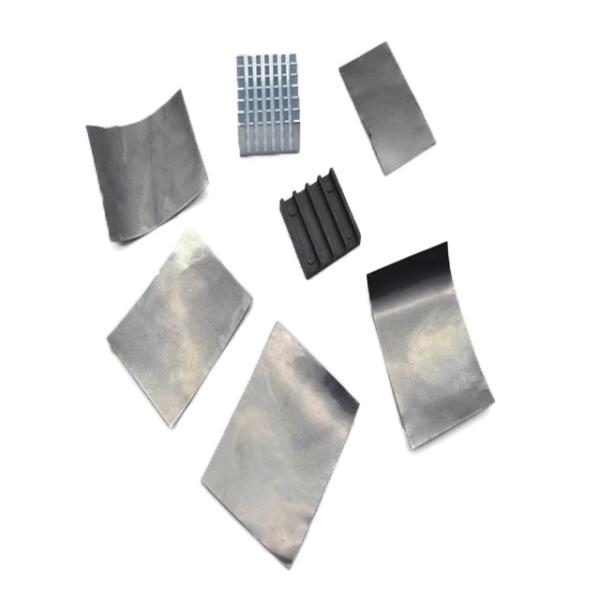

TIR600 Series Natural Graphite Gasket
TIR™600 Series products are high-performance and heat-conductive interface
materials with the reasonable prices.They can be used in
applications where no requirement for electric insulation is
specified. The unique grain orientation and plate structure enable
these products to adapt to different contact surfaces closely, and
thus the maximized heat conduction function is attained.
Feature
> Good thermal conductive: 240W/mK
> Easy to assemble
> Ultra-thin type
> Low thermal resistance
> RoHS compliant
Application
> PDP,LCD TV,Set top box
> Laptop,Notebook,Projector
> Mobile phone,Hand‐held devices
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
| Typical Properties of TIR™600 series |
| Product Name | TIR™605 | TIR™606 | TIR™610 | TIR™620 | Test Method |
| Colour | Black |
| Material | Natural Graphite |
| Thickness | 0.005" (0.127 mm) | 0.006" (0.152 mm) | 0.010" (0.254 mm) | 0.020" (0.508 mm) | ASTM D751 |
| Total Thickness | +/- 10% | +/- 10% | +/- 5% | +/- 5% | ASTM D751 |
| Density | 2.2 g/cc | 2.2 g/cc | 2.2 g/cc | 2.2 g/cc | ASTM D297 |
| Hardness | 85 Shore A | ASTM D2240 |
| Operation Temperature | -200℃~ 300℃ | ****** |
| Volume Resistivity | 3.2X10³ Ohm-meter | ASTM D257 |
| Typical Thermal Conductivit (In Z axis) | 6.0W/m-K | 6.0W/m-K | 6.0W/m-K | 6.0W/m-K | ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) | 240 W/m-K | 240 W/m-K | 240 W/m-K | 240 W/m-K | ****** |
| Thermal Resistance @100psi | 0.037 (in²℃/W) | 0.042 (in²℃/W) | 0.057 (in²℃/W) | 0.098 (in²℃/W) | ASTM D5470 |
Standard Sheets Sizes : 500mm X 50m

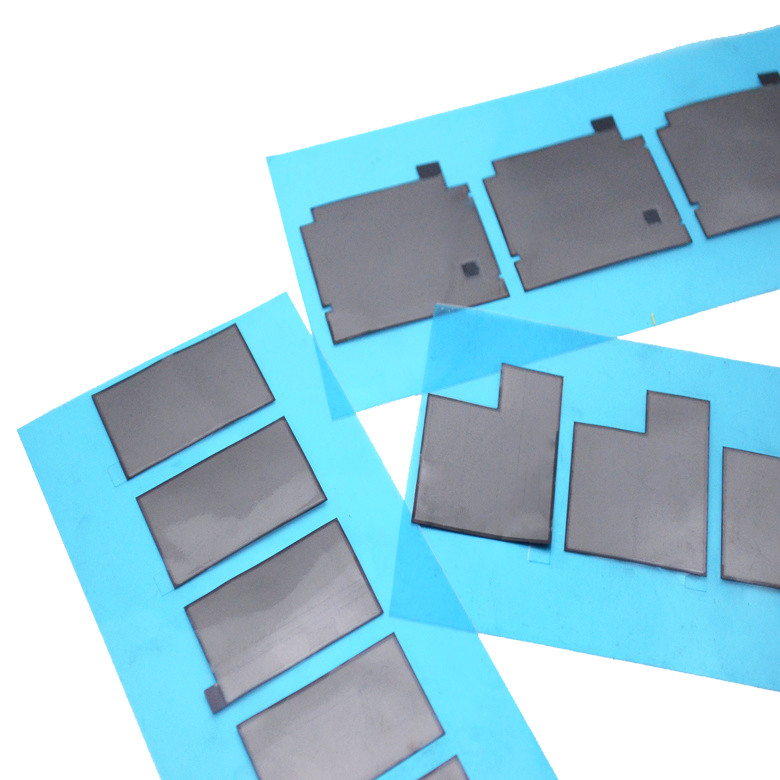

TIR™600 series Individual die cut shapes can be supplied.
Consult the factory alternate thickness
