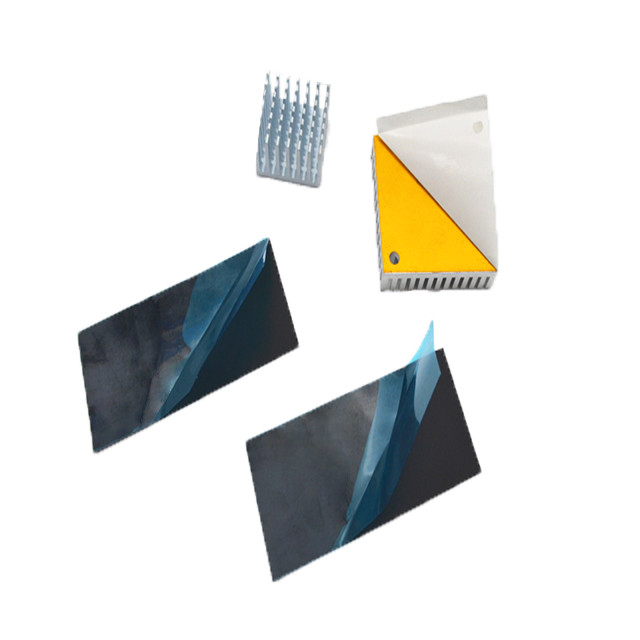

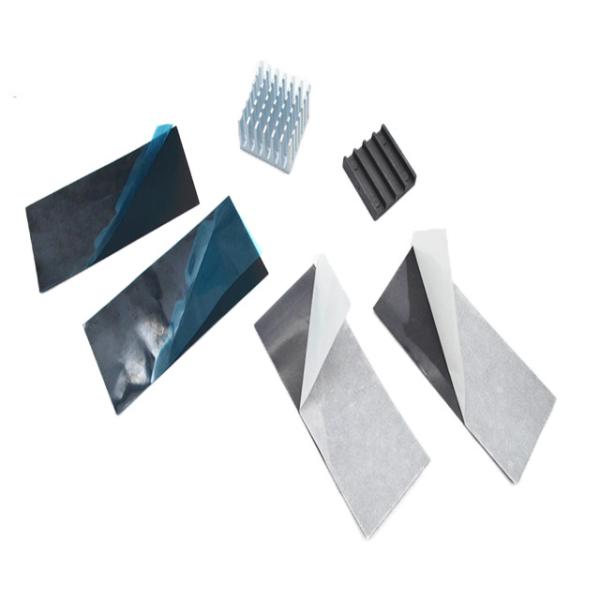

TIR300 Thermal Conductivity Graphite Sheet For Smart Phone
TIR™300 Series products are high performance thermal conductive interface
materials. The unique grain orientation and plate structure enable
these products to adapt to different contact surfaces closely, and
thus maximizes the ability of heat conduction.
Feature
> Good thermal conductive: 1700 W/mK
> Easy to assemble
> Ultra-thin type
> Low thermal resistance
> RoHS compliant
Application
> PDP,LCD TV,Set top box
> Laptop,Notebook,Projector
> Mobile phone,Hand‐held devices
> Mass storage devices
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
| Typical Properties of TIR300 series |
| Product Name | TIR312 | TIR317 | TIR325 | TIR332 | TIR340 | Test Method |
| Colour | Black |
| Material | Synthetic graphite |
| Thickness | 0.012 mm | 0.017 mm | 0.025 mm | 0.035 mm | 0.040 mm | ASTM D751 |
| Total Thickness | +/- 10% | +/- 10% | +/- 10% | +/- 10% | +/- 10% | ASTM D751 |
| Density | 1.9 g/cc | 2.0 g/cc | 1.8 g/cc | 1.9 g/cc | 1.8 g/cc | ASTM D297 |
| Hardness | 85 Shore A | ASTM D2240 |
| Operation Temperature | -40℃~ 400℃ | ****** |
| Volume Resistivity | 3.2X10³ Ohm-meter | ASTM D257 |
| Typical Thermal Conductivit (In Z axis) | 4.2W/m-K | 5.0W/m-K | 6.0W/m-K | 8.0W/m-K | 12 W/m-K | ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) | 1600 W/m-K | 1700W/m-K | 1500W/m-K | 1400W/m-K | 1200W/m-K | ****** |
| Thermal Resistance @100psi | 0.028 (in²℃/W) | 0.030 (in²℃/W) | 0.035 (in²℃/W) | 0.045 (in²℃/W) | 0.060 (in²℃/W) | ASTM D5470 |
Standard Sheets Sizes :
1,185mm x 220mm
2,195mm x 240mm
3,220mm x 320mm

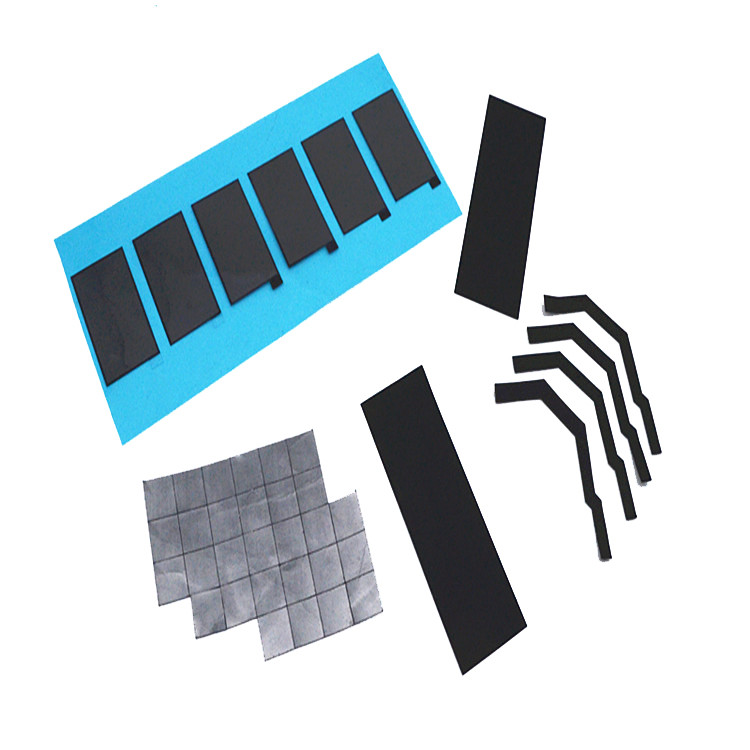

TIR™ 300 series Individual die cut shapes can be supplied.
Consult the factory alternate thickness
