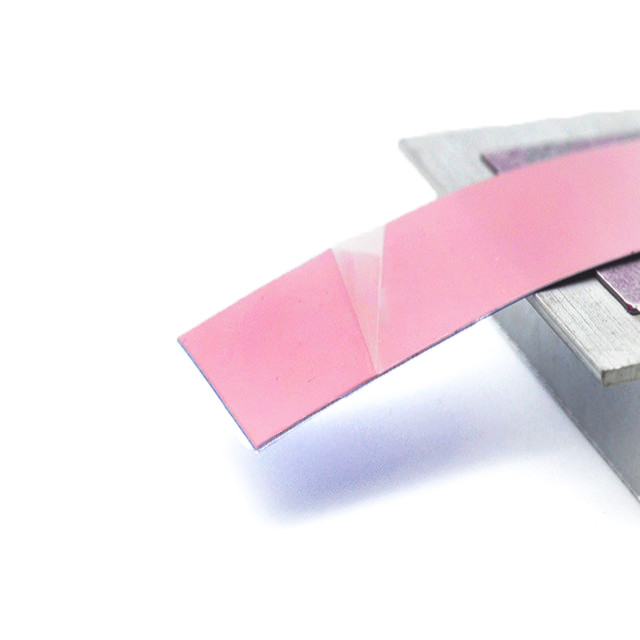

TCP820P Low Melting Point Thermal Conductive Phase Changing
Material
The TIC™820P series is low melting point thermal interface material. At 50℃, TIC™820P series begins to soften and flow, filling the microscopic
irregularities of both the thermal solution and the integrated
circuit package surface, thereby reducing thermal resistance.
TIC™820P series is a flexible solid at room temperature and free standing
without reinforcing components that reduce thermal performance.
TIC™820P Series shows no thermal performance degradation after 1,000
hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material
softens and does not fully change state resulting in minimal
migration(pump out)at operating temperatures.
Features
> 0.183℃-in²/W thermal resisitance
> Naturally tacky at room temperature,no adhesive required
> No heat sink preheating required
Applications
> Automotive electronics
> Set top boxes
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
| Typical Properties of TIC™820P |
| Product Name | TIC™820P | Test Method |
| Color | Pink | Visual |
| Thickness | 0.020"(0.50mm) | ***** |
| Thickness Tolerance | ±0.0020"(±0.050mm) | ***** |
| Phase change softening temperature | 50℃ ~60℃ | ***** |
| Density | 2.2 g/cc | ASTM D297 |
| Temperature range | -25℃ ~125℃ | ****** |
| Thermal conductivity | 0.95W/mK | ASTM D5470 |
| Thermal Impedance@50psi(345 KPa)℃-in²/W | 0.183℃-in²/W 1.18℃-in²/W | ASTM D5470 |
Standard Thicknesses:
0.020"(0.50mm)
Consult the factory alternate thickness.
Standard Sizes:
12" x 16"(304.8mm x 406mm) , 12"x400(304.8mm x 121.92m)
TIC820P series are supplied with a white release paper and a bottom
liner.TIC820P series is available inkiss cut an extended pull tab
liner or individual die cut shapes.
Peressure Sensitive Adhesive:
Peressure Sensitive Adhesive is not applicable for TIC820P series
products.
Reinforcement:
No reinforcement is necessary.
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting
point thermal interface materials, thermal conductive insulators,
thermally conductive tapes, electrically & thermally conductive
Interface pads and thermal grease,Thermal Conductive
plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials
products, with well-equipped testing equipment and strong technical
force.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in Vietnam.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
