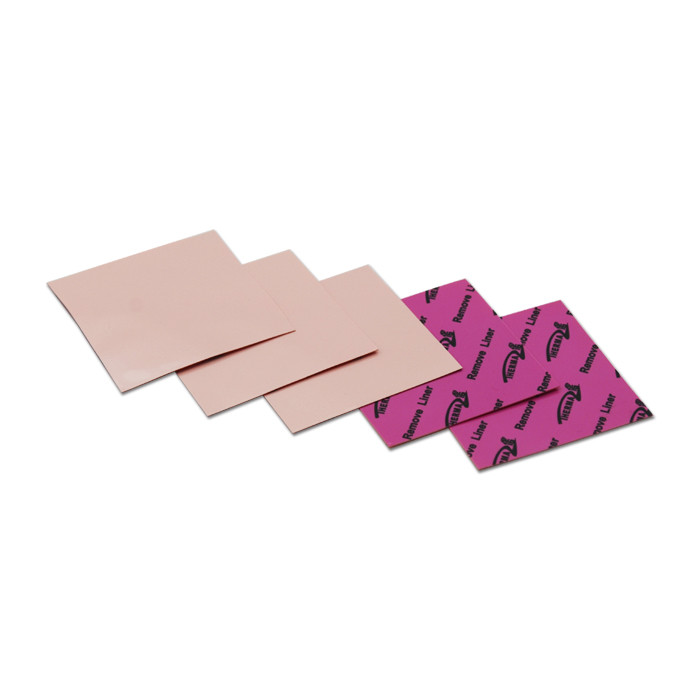

TIC800P Low Melting Point Thermal Interface Materials Thermal Phase Changing Material

The TIC™800P series is low melting point thermal interface material. At 50℃, TIC™800P series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.

TIC™800P series is a flexible solid at room temperature and free standing without reinforcing components that reduce thermal performance.

TIC™800P Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration(pump out)at operating temperatures.

Features

> 0.021℃-in²/W thermal resisitance

> Naturally tacky at room temperature,no adhesive required
> No heat sink preheating required

Applications

> Automotive electronics
> Set top boxes
> Set top boxes
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power

Standard Thicknesses:
0.005"(0.127mm) ,0.008"(0.203mm), 0.010"(0.254mm)
Consult the factory alternate thickness.

Standard Sizes:
12" x 16"(304.8mm x 406mm) , 12"x400(304.8mm x 121.92m)

TIC800P series are supplied with a white release paper and a bottom liner.

TIC800P series is available inkiss cut an extended pull tab liner or individual die cut shapes.

Peressure Sensitive Adhesive:
Peressure Sensitive Adhesive is not applicable for TIC800P series products.

Reinforcement:
No reinforcement is necessary.

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Công ty Công nghệ Ziitek Việt Nam is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
