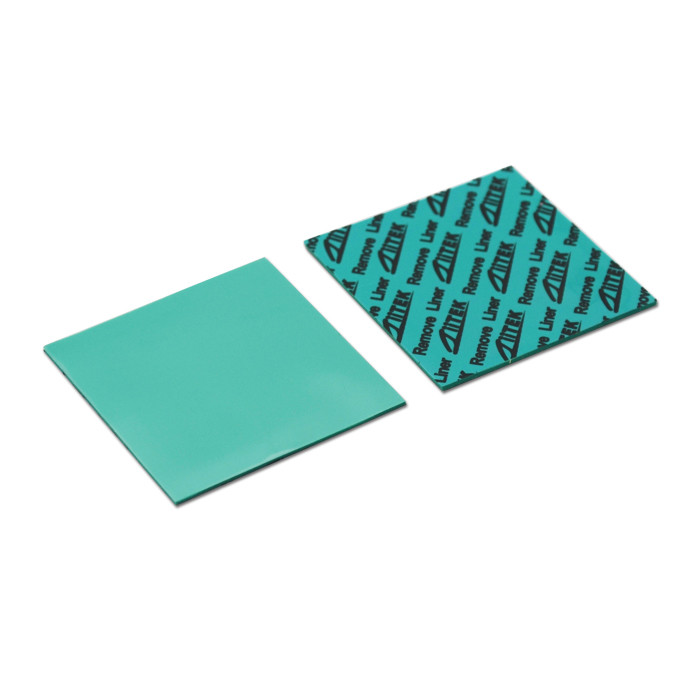

TIF100-12-66U Particularly Soft Thermal Pads 1.2W Laptop Silicone
Thermal Pads
Product descriptions
TlF100-12-66U series thermally conductive interface materials are
applied to fill the air gaps between the heating elements and the
heat dissipation fins or the metal base.Their flexibility and
elasticity make them suited to coat very uneven surfaces. Heat can
transmit to the metal housing or dissipation plate from the heating
elements or even the entire PCB, which effecitly enhances the
efficiency and life-time of the heat-generating electronic
components.
Features
> Good thermal conductivity
> Naturally tacky needing no furtheradhesive coating
> Soft and Compressible for low stressapplications
> Available in varies thickness
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
Application
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
| Typical Properties of TIF100-12-66U Series |
| Color | Green | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.020“(0.5mm~0.200"(5.0mm”) | ASTM D374 |
| Hardness | 45±5 (Shore 00) | ASTM 2240 |
| Specific Gravity | 2.3 g/cc | ASTM D297 |
| Continuos Use Temp(℃) | -40~160 | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.5 | ASTM D150 |
| Volume Resistivity | 1.0X10¹² Ohm-meter | ASTM D257 |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
| Outgassing (TML) | 0.35% | ASTM E595 |
| Flame Rating | V-0 | UL 94 |
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm),Individual die cut shapesand and custom
thickness can be supplied.
Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
With professional R&D capabilities and over 19 year experiences
in thermal interface material industry, Ziitek company own many
unique formulations which are our core technologies and advantages.
Our goal is to provide quality & competitive products to our
customers worldwide aiming for long-term business cooperation.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries
in English of course.
Standard Export Carton Or Marked With Customer's Information Or
Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if
you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory
solution.
