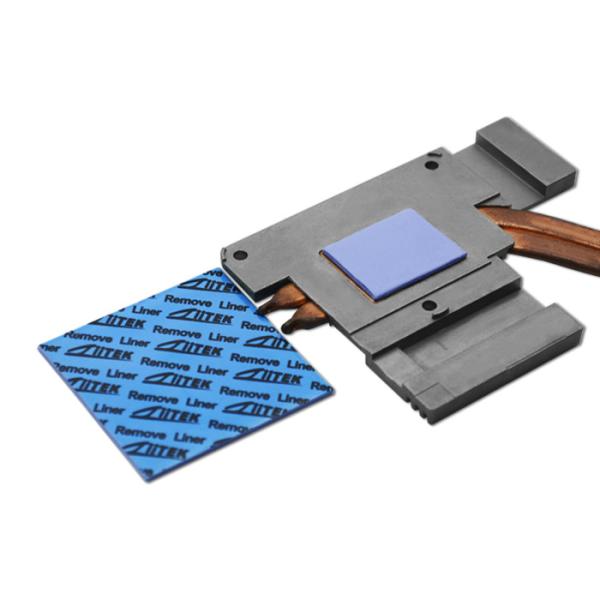

Manufature Silicone Thermal Pad Thermal Sheet For Mainboard/Mother
Board
Product descriptions
TlF100-60-16S series thermally conductive interface materials are
applied to fill the air gaps between the heating elements and the
heat dissipation fins or the metal base.Their flexibility and
elasticity make them suited to coat very uneven surfaces. Heat can
transmit to the metal housing or dissipation plate from the heating
elements or even the entire PCB, which effecitly enhances the
efficiency and life-time of the heat-generating electronic
components.
Features
> Good thermal conductivity
> Naturally tacky needing no furtheradhesive coating
> Soft and Compressible for low stress application
> Available in varies thickness
> Easy release construction
> Electrically isolating
> Moldability for complex parts
Application
> LED Ceilinglamp
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
| Typical Properties of TIF100-60-16S Series |
| Color | Violet | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.020"~0.200"(0.50~5.0mm) | ASTM D374 |
| Hardness | 45 (Shore 00) | ASTM 2240 |
| Specific Gravity | 3.4 g/cc | ASTM D297 |
| Continuos Use Temp(℃) | -40~160℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 6.0 MHz | ASTM D150 |
| Volume Resistivity | 5.0X10¹²Ohm-meter | ASTM D257 |
| Thermal conductivity | 6.0W/m-K | ASTM D5470 |
| Outgassing (TML) | 0.45% | ASTM E595 |
| Flame Rating | V-0 | UL 94 |
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm),Individual die cut shapesand and custom
thickness can be supplied.
Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the
R&D, manufacture and sales of the thermal interface materials
(TIMs). We have rich experiences in this field which can support
you the latest, most effective and one -step thermal management
solutions. We have many advanced production equipments,full test
equipments and fully automatic coating production lines which can
support the production for high performance thermal silicone pad,
thermal graphite sheet/ film, thermal double-sided tape, thermal
insulation pad, thermal ceramic pad, phase change material, thermal
grease etc. UL94 V-0, SGS and ROHS are compliant.
