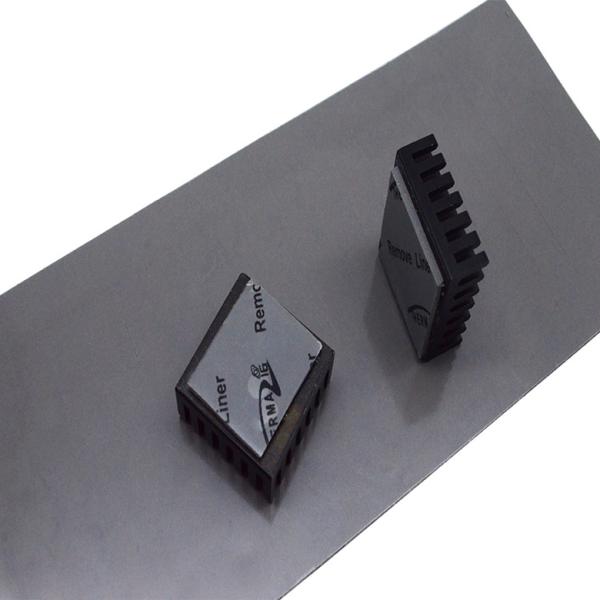

TIF100-50-11F Ultra-Soft Silicone Thermal pad on PC cooling

Ziitek TIF™100-50-11F is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features:

> Good thermal conductive: 5.0W/mK
> Good thermal conductivity
> Naturally tacky needing no furtheradhesive coating
> Soft and Compressible for low stressapplications
> Available in varies thickness

Applications:

> Semiconductor automated test equipment (ATE)
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers

Typical Properties of TIF100-50-11F Series
Property	Value	Test method
Color	Dark Gray	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Density	3.15g/cc	ASTM D297
Thickness range	0.020"(0.5mm)~0.200"(5.0mm)	ASTM D374
Hardness	60±5 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 160℃	******
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149
Dielectric Constant	6.0 MHz	ASTM D150
Volume Resistivity(Ohm-cm)	1.0X10¹²	ASTM D257
Fire rating	94 V0	UL E331100
Thermal conductivity	5.0W/m-K	ASTM D5470

Products Thickness:
0.020 inch to 0.200 inch(0.5mm to 5.0mm)

Products Size:

8"*16"(203mm*406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Company Profile

With professional R&D capabilities and over 19 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Công ty Công nghệ Ziitek Việt Nam is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
