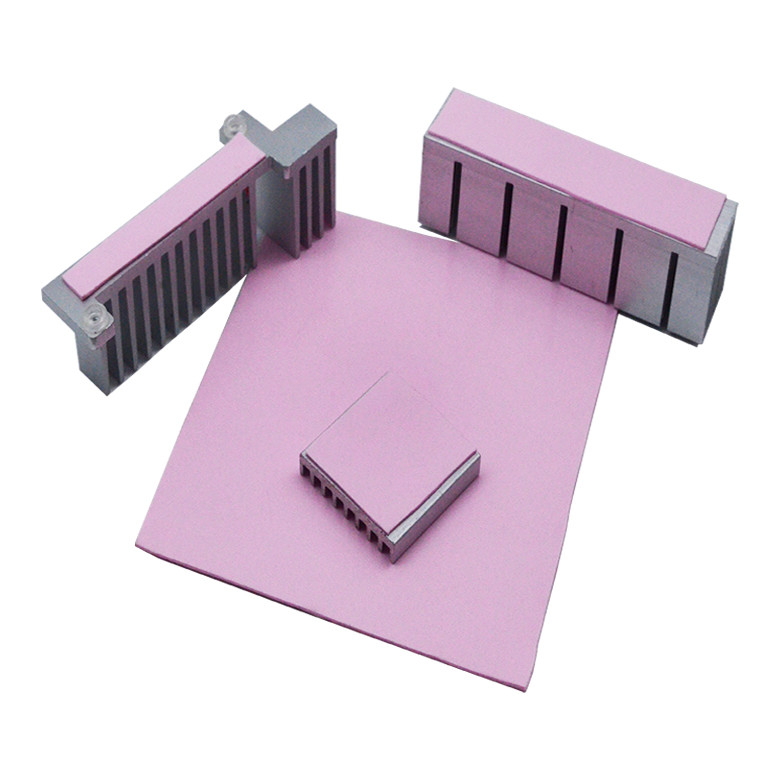

TIF100-16-38UF Silicone thermal pad thermal gap filler pad​

The TIF™100-16-38UF series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

Features:

> Good thermal conductive: 1.6W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> RoHS compliant
> UL recognized

Applications:

> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

Typical Properties of TIF100-16-38UF Series
Property	Value	Test method
Color	Plink	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Density	2.1g/cm³	ASTM D792
Thickness range	0.010"(0.25mm)~0.200"(5.0mm)	******
Hardness	80±5 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 160℃	***
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149
Dielectric Constant	5.5 MHz	ASTM D150
Volume Resistivity(Ohm-cm)	1.0X1012	ASTM D257
Fire rating	94 V0	UL equivalent
Thermal conductivity	1.6W/m-K	ASTM D5470

Products Thickness:
0.020 inch to 0.200 inch(0.5mm to 5.0mm)

Products Size:

8"*16"(203mm*406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
