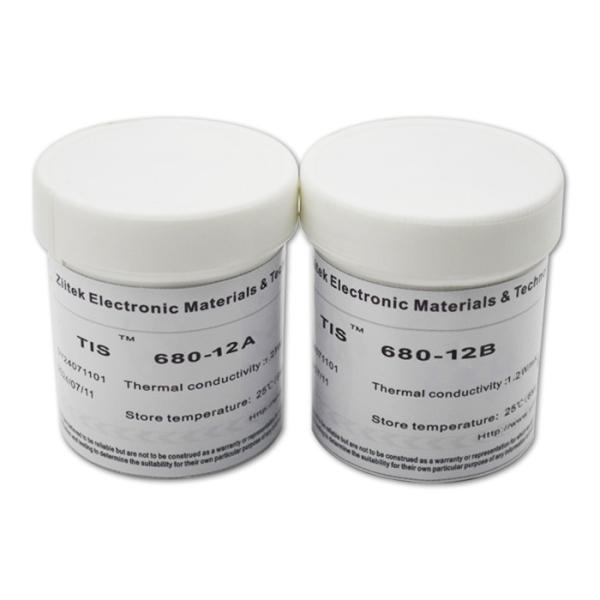

    TIS680-12AB Gray 1.2W/MK Two Compound Thermally Conductive Potting Compound For Electronic Component

    Ask Lasest Price
    Brand Name : Ziitek
    Model Number : TIS680-12AB
    Certification : UL and RoHs
    Price : 0.1-10 USD/kg
    Payment Terms : T/T
    Supply Ability : 10000KG/month
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    TIS680-12AB Gray 1.2W/MK Two Compound Thermally Conductive Potting Compound For Electronic Component

    TIS680-12AB Gray 1.2W/MK Two Compound Thermally Conductive Potting Compound For Electronic Component


    TIS680-12AB Series is a two-part silicone potting adhesive with high thermal conductivity, room temperature curable,long working time and fire resistance.lt is especially suitable for capacitor, small electronic equipment sealing. Its flexible, elastic characteristics enable it to provide cushioning for the materials it is coated with. The lower viscosity aliows the thermal potting adhesive to cover the surface more fully,greatly increasing the efficiency of heat transfer from the heating device or the entire PCB to the metal case or diffusion plate,thus improving the efficiency and service life of the electronic.


    Feature


    > Good thermal conductivity: 1.2W/mK

    > Good insulation performance

    > Good elasticity
    > Lower shrinkage
    > Low viscosity, easy gas emissions
    > Good solvent resistance and waterproof performance
    > Longer working hours

    > Excellent high and low temperature resistance
    > No odor release during thecuring process


    Application

    > Industrial control, transformer,coil, amplifier, high voltage package, relay, high current junction box, etc.;
    > Heat sink assembly, thermal sensor potting,thermal conductive product potting;
    > Heat conduction between the battery cell and the cold tube;
    > LED and power drive potting;
    Typical Properties of TISTM 680-12AB Series
    Material Properties(before Curing)
     TIS680-12ATIS680-12B
    ColorWhiteGray
    Viscosity @25℃(mPa.s)30003000
    Shelf life6 months @25℃ in sealed container

    Mixing Ratio (By weight)A : B=100 :100
    Mix ColorGray
    Operational Time30 mins
    Conditions for Complete Curing@25℃ 24H
    @70℃ 2H
    @100℃ 1H
    Material Properties(After Curing)
    Hardness (Shore A)65
    Density (g/cc) 1.7
    Operating temperature (℃)-40 ~160
    Elongation(%)120
    CLTE (1/℃)3.0x 10-5
    Fire resistance UL94V-0
    Water Absorption Rate (wt%)< 0.1
    Thermal Conductivity (W/mK)1.2
    Thermal Impedance @1mm (℃-in²/W)0.48
    Dielectric Breakdown Voltage (V/mm)6,000
    Dielectric Constant@1MHz4.2
    volume resistivity, ohm-cm @ 25℃3.0x 1013
    Package:
    300ml/Tube, 24PCS/Box
