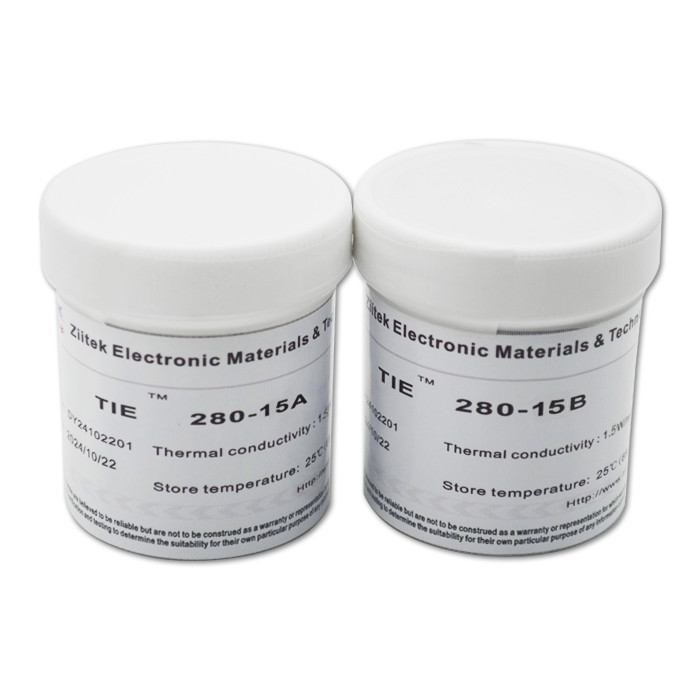

TIE280-15AB Two-Component Thermal Conductive 1.5W/Mk Epoxy Resin
Potting Compound For Circuit Board
Product Summary:
TIE™ 280-15AB Series is a two-component, high thermal conductive, low
temperature cured, long pot life, fire resistant Silica encapsulant
glue. lt is design for potting of capacitors and electrical
devices.Their flexibility and elasticity make them suited to the
coating of the very uneven surfaces. Heat can transmit to the metal
housing or dissipation plate from the separate elements or even the
entire PCB, which in effect enhances the efficiency andlife-time of
the heat-generating electronic components.
Features
>Good thermal conductive: 1.5W/mK
> Excellent insulation and smoothlysourface.
> Low shrinkage
> Low viscosity, expediting air releaseed.
> Excellent in solvents and water proof.
> Longer life time.
> Excellent thermal shock efficiecy andimpact resistance
Application
>To potting LED Lighting heat spreaderand power- driver.
>Ferrite cements; tip type LED; good cementation to aromatic
polyester
>Relay sealant; Good adhesion torubber, ceramics,PCB and
plastics
>Power transformers and coils; Potting capacitors; Potting of
small electrical devices
>Adhesion to metal glass and plastic;LCD & substrates adhesion;
Coatingand sealant; Coil ; lGBTS;Transformer; Fire retardant
>Optical / medical component adhesive
| Typical Properties of TIE280-15AB Series |
| Typical Uncured Material |
| TIETM280-15A(Resin) | Mixing ratio (weight ratio)
A:=1 :1 |
| Color | Black |
| Viscosity @25℃ Brookfield | 15000 cPs | Viscosity @25℃ Brookfield | 10000 cPs |
| Operating time (@25℃) | 45 mins |
| Shelf life @25℃ in sealed | 12 months | specific Gravity | 1.6 g/cc |
| Mixture Color | Black |
| TIETM280-12B(Hardener) | Cure Schedule |
| Color | Black | Cure at 25C | 3 hrs |
| Viscosity @25℃ Brookfield | 7000 cPs |
| Shelf life @25℃ in sealed container | 12 months | Cure at 7o°c | 30 mins |
| Cured Properties |
| Hardness @25℃ | 85 Shore D |
| Operating temperature | -40℃ ~160℃ |
| Glass transition temperature Tg | 92℃ |
| Rate of tension | 0.10% |
| Coefficient of thermal expansion, /℃ | 3.0x 10-5 |
| Fire resistance uL | 94 V-0 |
| Moisture absorption % wt gain 24 hours water immersion @25℃ | <0.1% |
| Thermal Conductivity | 1.5 W/m-K |
| Dielectric Breakdown Voltage | 300 volts / mil |
| Dielectric Constant@1MHz | 4.2 |
| volume resistivity, ohm-cm @ 25℃ | 3.0x 1013 |
Product packaging
1KG A/B for each tank.
5KG A/B each.
10KG A/B each.
