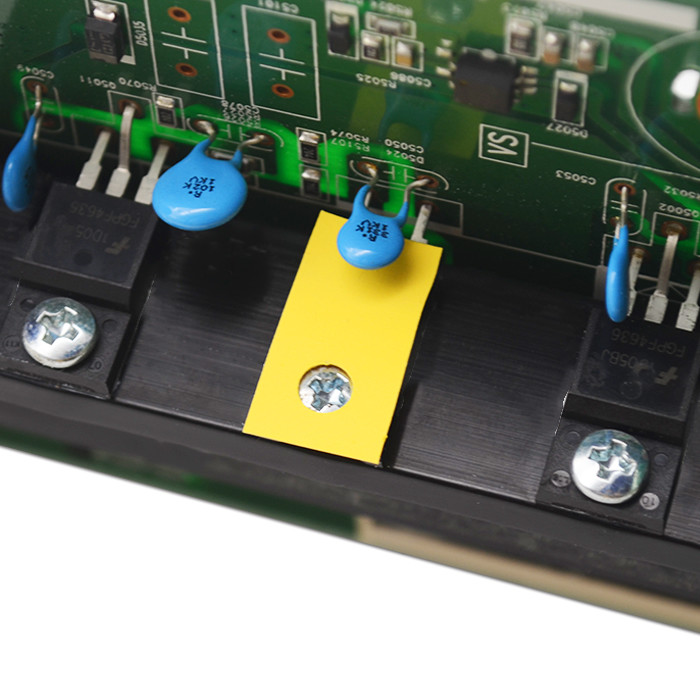

TIS812-11-03 Yellow Silicone Heat Insulation Pad Thermal Insulation
Materail For Battery In New Energy
The TIS®812-11-03 Series of products are highly efficient insulating products and they also
have thermal conductivity. It achieves the effect of both
insulation and heat conduction by adding insulating silicone base
material to the heat-conducting material.
Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
Applications:
> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers
| Typical Properties of TIS®812-11-03 Series |
| Property | Value | Test Method |
| Color | Yellow | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer /fiberglass | ****** |
| Thickness range | 0.0120inch (0.305mm) | ASTM D374 |
| Tensile Strength(MPa) | 50 | ASTM D412 |
| Density | 2.4 g/cc | ASTM D297 |
| Continuos Use Temp | -60 to 180℃ | ****** |
| Breakdown Voltage(V/mm) | 5000 | ASTM D149 |
| Dielectric Constant @ 1MHz | 5.0 | ASTM D150 |
| Volume Resistivity | 1.0X10¹² Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | UL(E331100) |
| Thermal conductivity | 1.1W/m-K | ASTM D5470 |
| Thermal impedance(℃-in²/W)@30psi | 0.61 | ASTM D5470 |
Standard Thicknesses
0.012inch (0.305mm)
Standard Sizes
12" x 160"(304mm x 48.76M)
The TlS series can be die-cut into different shapes and provided.
lf you need different thicknesses, please contact our company.
Packaging Details & Lead time
The packaging of Thermal Insulation Materials
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
