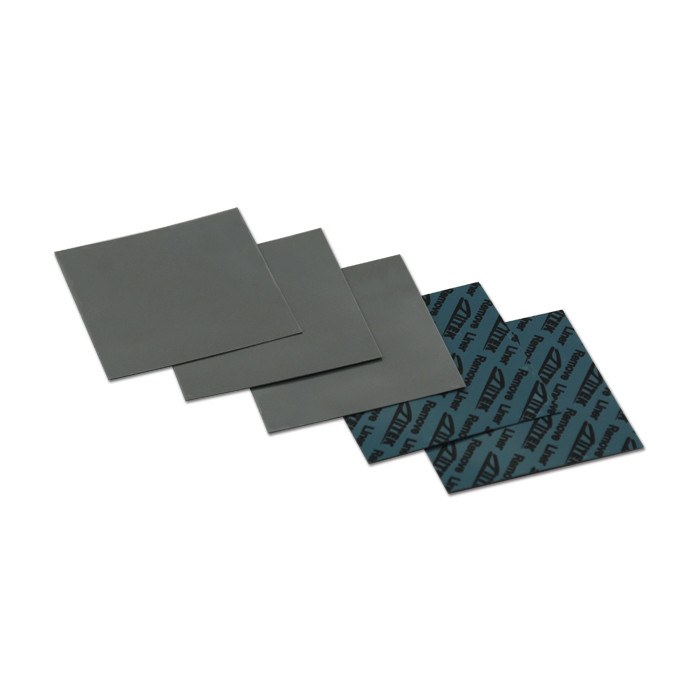

Z-Paster100-20-11S Non-Silicone Thermal Conductive Gap Filler Pad
For Car Battery & Power Supply
Z-PasterTM100-20-11S Series is a high performance and compatible non-silicone material of the
thermal conductive interface materials.The role is to fill the air
gaps between the heating elements and the heat dissipation fins or
the metal base.It is a unique thermal pad with low oil
permeability, low thermal resistance, high softness and high
compliance.
It applies to the liner based on silicone suitably. The flexibility
and elasticity make it suited to the coating of the very uneven
surfaces.Heat can transmit to the metal housing or dissipation
plate from the separate elements or even the entire PCB, which in
effect enhances the efficiency and life-time of the heat-generating
electronic components.
Features
> Silicone-free
> ROSH compliance
> Good thermal conductive: 2.0W/mK
> Soft and Compressible for low stress applications
> Available in varies thickness
Application
> Cooling components to the chassis of frame
> Car Battery & Power Supply
> Charging Pile
> Silicone-sensitive applications
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> CPU
> Display card
> Mainboard/mother board
Typical Properties of Z-Paster100-15-02F Series |
| Color | Dark Gray | Visual | Dielectric Breakdown Voltage (T= 1mm above) | >5000 VAC | ASTM D149 |
|
| Construction | Silicone-free The metal oxide fills | ******* | Dielectric Constant | 5.5 MHz | ASTM D150 |
|
| Thermal Conductivity | 2.0W/mK | ASTM D5470 | Volume Resistivity | 6.3X1013 Ohm-meter | ASTM D257 |
|
| Hardness | 55 Shore 00 | ASTM 2240 | Continuous Use Temp | –20 To 125℃ | ******** |
|
| Specific Gravity | 2.65 g/cc | ASTM D297 | Outgassing (TML) | 0.30% | ASTM E595 |
|
| Thickness range | 0.010"-0.200" (0.25mm-5.0mm) | ASTM D374 | Flame Rating | 94 V0 | equivalent to |
Standard Thicknesses
0.010-inch to 0.200-inch (0.25mm to 5.0mm)
Options
Proprietary NS1 option available to eliminate tack from one side to
aid in handling.
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the
R&D, manufacture and sales of the thermal interface materials
(TIMs). We have rich experiences in this field which can support
you the latest, most effective and one -step thermal management
solutions. We have many advanced production equipments,full test
equipments and fully automatic coating production lines which can
support the production for high performance thermal silicone pad,
thermal graphite sheet/ film, thermal double-sided tape, thermal
insulation pad, thermal ceramic pad, phase change material, thermal
grease etc. UL94 V-0, SGS and ROHS are compliant.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in Vietnam.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including
dimension , shape , color and coated on side or two sides adhesive
or coated fiberglass. If you want to place a custom order , pls
kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other
requirements, such as adhesive and others. Please let us know these
factors first so that we could give you an exact price.
