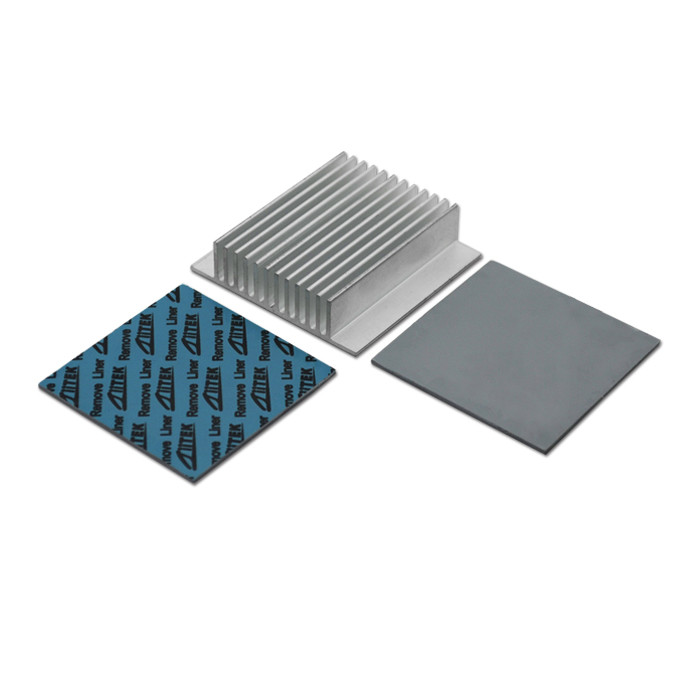

TIF700HM Flexible Thermal Gap Filler Pad For Battery And Heat Sink
Solutions
Product descriptions
TIF®700HM Series thermally conductive interface materials are applied to
fill the air gaps between the heating elements and the heat
dissipation fins or the metal base.Their flexibility and elasticity
make them suited to coat very uneven surfaces.Heat can transmit to
the metal housing or dissipation plate from the heating elements or
even the entire PCB, which effecitly enhances the efficiency and
life-time of the heat-generating electronic components.
Features
> Good thermal conductive 6.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Application
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
| Typical Properties of TIF®700HM Series |
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Specific Gravity | 3.3g/cc | ASTM D297 |
| thickness | 0.020"(0.5mm)~0.200"(5.00mm) | ASTM D374 |
| Hardness (thickness＞0.75mm) | 45±5 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ****** |
| Dielectric Breakdown Voltage | ≥5500 VAC | ASTM D149 |
| Dielectric Constant | 4.5MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X10¹²Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | equivalent UL |
| Thermal conductivity | 6.0W/m-K | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Product Specification
Product Thicknesses: 0.020"(0.5mm)-0.200"(5.00mm)
Product Sizes:8" x 16"(203mm x406mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1(Single-sided
hardening).
Adhesive Options: A1/A2(Single-sided/Double-sided adhesive).
Notes:FG (Fiberglass) provides enhanced strength, suitable for
materials with thicknesses of 0.01 to 0.02 inch (0.25to 0.5mm).
The TIF series is available in custom shapes and various forms.For
other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
