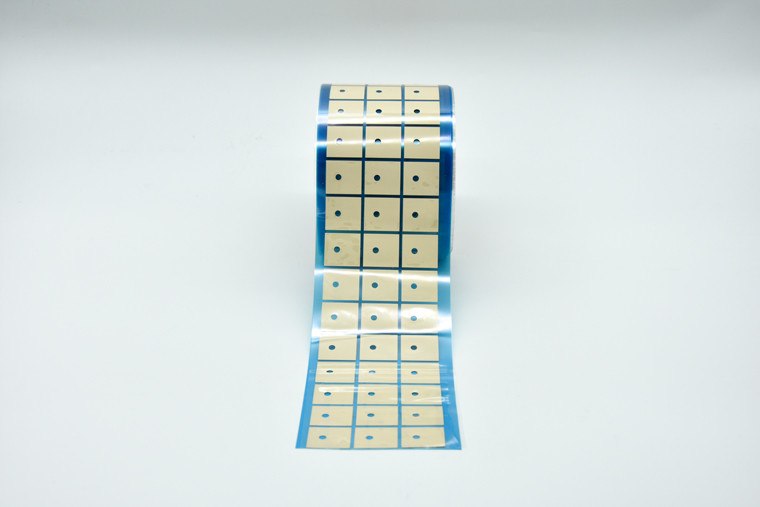

TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics

TIS^TM100-86-37 Series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

Features

> Highly thermal conductive 1.8W/mK
> High dielectric strength
> Low thermal resistance with high voltage isolation

> Easy release construction
> Resistant to teaars and punctures

Applications

> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics

Product Specification

Product Thicknesses

TIS 105-86/30: 0.125mm

TIS 109-86/30: 0.225mm

TIS 112-86/30: 0.300mm

TIS 116-86/30: 0.400mm

TIS 120-86/30: 0.500mm

Product Sizes
12" x 160(304mm x 48.76M)
lndividual die cut shapes and custom thickness can be supplied.

Pleasecontact us for confirming.
The product come standard withfiberglass reinforcement designatedby the suffix " FG".

Công ty Công nghệ Ziitek Việt Nam is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
