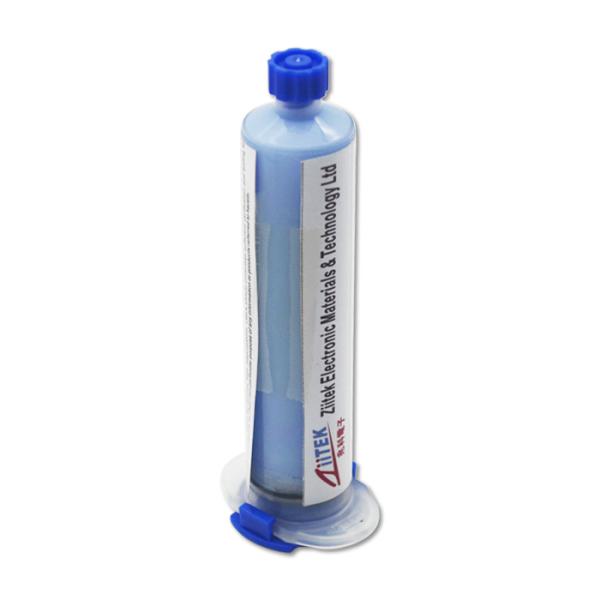

Thermal Conductive Gel Silicone Heat Transfer Gel For Heat Sink
Dissipate Heat
TIF035-05 is a soft silicone putty thermal gap filler,which blend with
exclusive formula,that offer superior thermal performance, and
compressibility. Due to TIF035-05 is made by high vicosity silicon
oil ,that can prevent thermal formula seprate from it. Besides
,compared with traditionally thermal pad, it can control bonded
shifiting issue much better.
TIF035-05 operation mold is simliar as grease ,such as silkprint and screen
print or automatic injected facility. TIF035-05 can be applied on
chip micro processor,PPGAs,Micro BGA package,BGA package,DSP
chip,LED lighting and other high power electric component.
Feature
> Thermal conductivity: 3.5W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
Application
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
| TIFTM035-05 Typical Properties |
| Property | Value | Test method |
| Color | blue | Visual |
| Construction & Composition | Ceramic filled silicon material | ***** |
| Viscosity | 2000K mPa.s | GB/T 10247 |
| Density | 3.2g/cm³ | ASTM D297 |
| Thermal conductivity | 3.5W/mK | ASTM D5470 |
| Thermal diffusivity | 1.1073 mm²/s | ISO 22007-2 |
| Specific heat capacity | 3.3 MJ/m3K | ISO 22007-2 |
| Continuous Use Temperature | -45 ~200°C | Ziitek Test Method |
| Dielectric breakdown strength | 200 V/mil | ASTM D149 |
| Outgassing(TML) | 0.80% | ASTM E595 |
| Flame Rating | 94V0 | UL E331100 |
Packing details
30 cc/pc, 98 pc/box;
300 cc/pc , 6 pc/box
We offer the custom packaged in syringes for automated despensing
applications.
Please contact us for confirming.
