TIF045-01 High Thermal 6.5W Silicone Thermal conductive Gel For Gap
Filling
TIF045-01 is a soft silicone putty thermal gap filler,which blend with
exclusive formula,that offer superior thermal performance, and
compressibility.
Due to TIF045-01 is made by high vicosity silicon oil ,that can
prevent thermal formula seprate from it. Besides ,compared with
traditionally thermal pad, it can control bonded shifiting issue
much better.
TIF045-01 operation mold is simliar as grease ,such as silkprint and screen
print or automatic injected facility.
TIF045-01 can be applied on chip micro processor,PPGAs,Micro BGA
package,BGA package,DSP chip,LED lighting and other high power
electric component.
Feature
> Thermal conductivity: 4.5W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
> Proven long-term reliability
Application
> Mass storage devices
> Heat-sink & frame
> LED backlight module,LED lighting
> High speed hardware driver
> Micro heat pipe
> vihicel enginee controler
> Telecom industry
> Semiconductor automaticlaboratory equipment.
| TIFTM045-01 Typical Properties |
| Property | Value | Test method |
| Color | Black | Visual |
| Construction & Composition | Ceramic filled silicon material | ***** |
| Viscosity | 4000K mPa.s | GB/T 10247 |
| Density | 2.95g/cm³ | ASTM D297 |
| Thermal conductivity | 4.5W/mK | ASTM D5470 |
| Thermal diffusivity | 1.651 mm²/s | ISO 22007-2 |
| Specific heat capacity | 2.7MJ/m3K | ISO 22007-2 |
| Continuous Use Temperature | -45 ~200°C | Ziitek Test Method |
| Dielectric breakdown strength | 200 V/mil | ASTM D149 |
| Flame Rating | 94V0 | UL E331100 |
Packing details
30 cc/pc, 98 pc/box;
300 cc/pc , 6 pc/box

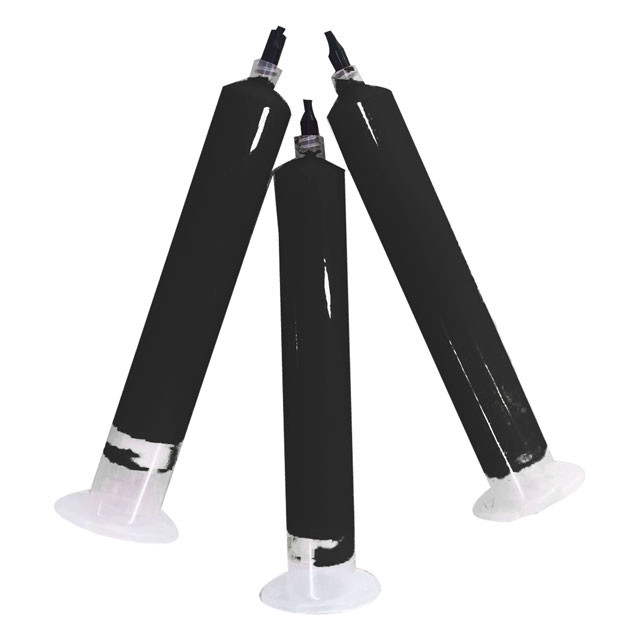

We offer the custom packaged in syringes for automated despensing
applications.
Please contact us for confirming.
