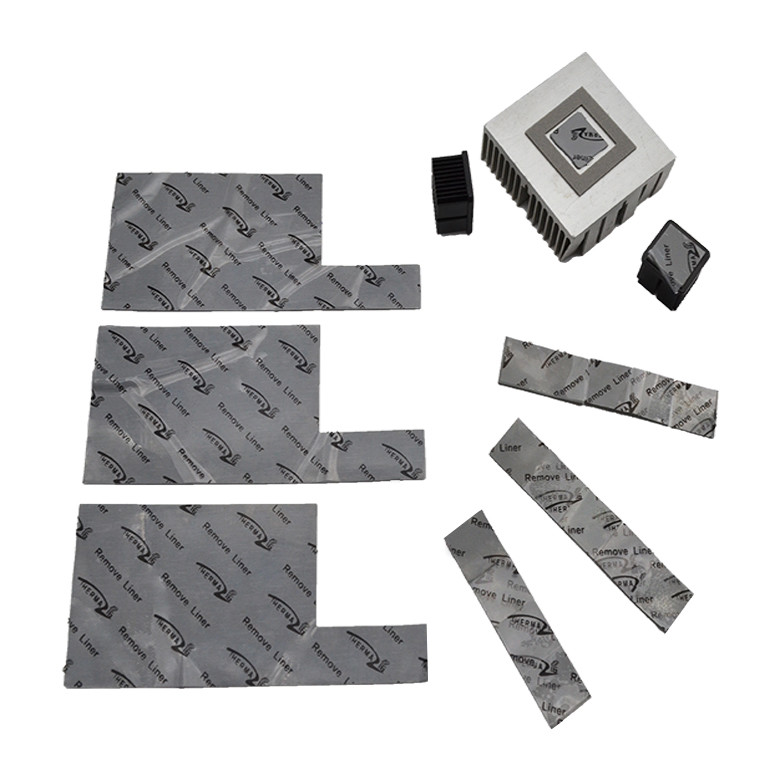

TIF100-30-11F Sample Free 3.0 W/M.K Thermally Conductive Pad For
LED/TV Heat Dissipation
Product descriptions
TlF100-30-11F is a silicone based, thermally conductive gap pad.
Its unreinforced construction allows additional compliancy. This
product has low hardness is conformable and is electrically
isolating. The low modulus characteristic of the product offers
optimal thermal performance with the ease of handling.
Features
> Good thermal conductive 3.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
Application
> Mainboard/mother board
> Notebook
> Power supply
> Micro heat pipe thermal solutions
> CPU
> Home and small office network equipment
> Handheld portable electronics
> Plasma supply panels
> Semiconductor automated test equipment (ATE)
| Typical Properties of TIF100-30-11F Series |
| Property | Value | Test method |
| Color | Gray | ***** |
| Construction &Compostion | Ceramic filled silicone elastomer | ***** |
| Specific Gravity | 3.0g/cc | ASTM D297 |
| Thickness range | 0.020"(0.50mm)~0.200"(5.0mm) | ASTM D374 |
| Hardness | 60 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ***** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 5.0MHz | ASTM D150 |
| Volume Resistivity | 2.3X10¹³Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Outgassing(TML) | 0.35% | ASTM E595 |
| Thermal conductivity | 3.0W/m-K | ASTM D5470 |
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm)
Individual die cut shapesand and custom thickness can be supplied.
Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the
R&D, manufacture and sales of the thermal interface materials
(TIMs). We have rich experiences in this field which can support
you the latest, most effective and one -step thermal management
solutions. We have many advanced production equipments,full test
equipments and fully automatic coating production lines which can
support the production for high performance thermal silicone pad,
thermal graphite sheet/ film, thermal double-sided tape, thermal
insulation pad, thermal ceramic pad, phase change material, thermal
grease etc. UL94 V-0, SGS and ROHS are compliant.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
