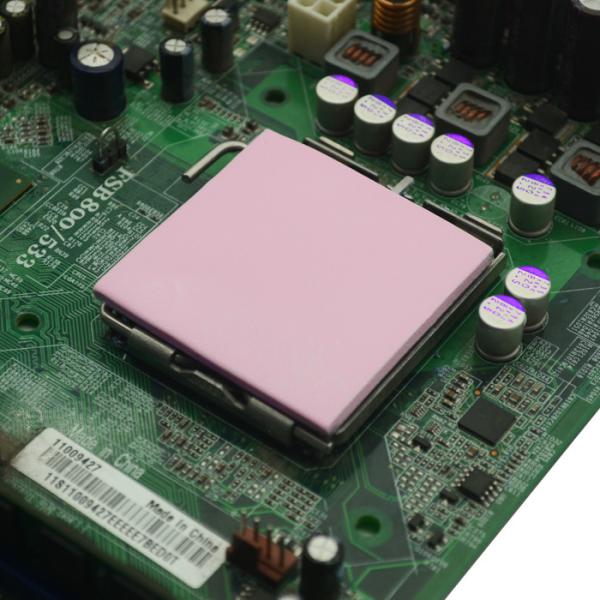

Ultra Soft TIF100-20-50E Pink Thermally Conductive Pad For LED/TV
Heat Dissipation
Product descriptions
TlF100-20-50E is not only designed to take advantage of the gap
heat transfer, to fill gaps, complete the heat transfer between
heating and cooling parts, but also played insulation, damping,
sealing and so on, to meet the equipment miniaturization and
ultra-thin design Requirements, which is a highly technology and
use, and the thickness of the wide range of applications, is also
an excellent thermal conductivity filler material.
Features
> Good thermal conductive 2.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
Application
> Mainboard/mother board
> Notebook
> Power supply
> Micro heat pipe thermal solutions
> CPU
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
| Typical Properties of TIF100-20-50E Series |
| Property | Value | Test method |
| Color | Pink | ***** |
| Construction &Compostion | Ceramic filled silicone elastomer | ***** |
| Specific Gravity | 2.7g/cc | ASTM D297 |
| Thickness range | 0.020"(0.50mm)~0.200"(5.0mm) | ASTM D374 |
| Hardness | 35 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ***** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 5.0MHz | ASTM D150 |
| Volume Resistivity | 1.0X10¹² Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Thermal conductivity | 2.0W/m-K | ASTM D5470 |
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm)
Individual die cut shapesand and custom thickness can be supplied.
Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
