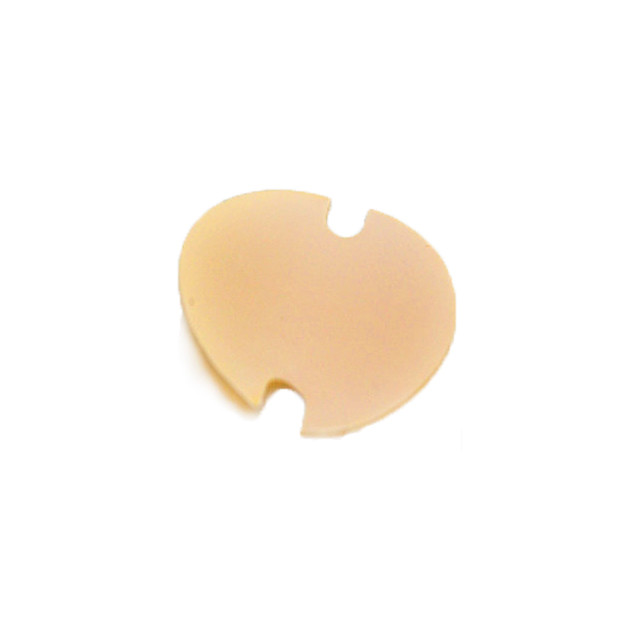

TIC800K High Thermal Conductivity PCM Thermal Phase Changing
Material For Mainboard/Mother Board
The TICTM800K Series products is a high thermal conduction and dielectric
performance insulator pad consisting of a ceramic filled low
melting point compound coated on MT Kapton film.
At 50℃,TICTM800K Series surface begins to soften and flow, filling the microscopic
irregularities of both the thermal solution and the integrated
circuit package surface, thereby reducing thermal resistance
Features
>Highly compliant surface characteristic with high thermal
conductivity
>High thermal conductive and High dielectric strength
>Low thermal resistance with high voltage isolation
>Resistant to tears and punctures
Applications
>Power conversion equipment
>Power semiconductors: T0 packages, MOSFETs & IGBTs
>Audio and Video components
>Automotive control units
>Motor controllers
>General high pressure interface
| Typical Properties of TIC™800K series |
| Product Name | TIC™805K | TIC™806K | TIC™808K | Test Method |
| Color | Light Amber | Visual |
| Composite Thickness | 0.004"/0.102mm | 0.005"/0.127mm | 0.006"/0.152mm | ASTM D374 |
| MT Kapton ® Thickness | 0.001"/0.025mm | 0.001"/0.025mm | 0.002"/0.050mm | ASTM D374 |
| Total Thickness | 0.005"/0.127mm | 0.006"/0.152mm | 0.008"/0.203mm | ASTM D374 |
| Specific Gravity | 2.0 g/cc | ASTM D297 |
| Heat Capacity | 1 l/g-K | ASTM C351 |
| Tensile Strength | >13.5 Kpsi | >13.5 Kpsi | >17.8 Kpsi | ASTM D412 |
| Continuous Use Temp | (-58 to 266℉) / (-50 to 130℃) | *** |
| Dielectric Breakdown Voltage | >4000 VAC | >5000 VAC | >6000 VAC | ASTM D149 |
| Dielectric Constant | 1.8 MHz | ASTM D150 |
| Volume Resistivity | 3.5*10^14Ohm-meter | ASTM D257 |
| Thermal conductivity | 1.6 W/mK | | | ASTM D5470 |
| Thermal Impedance@50psi | 0.12℃-in²/W | 0.13℃-in²/W | 0.16℃-in²/W | ASTM D5470 |
Standard Thicknesses:
0.005"(0.127mm) ,0.006"(0.152mm), 0.008"(0.203mm)
Individual die cut shapes and custom thickness can be supplied.
Please contact us for confirming.
Standard Sizes:
10" x 100"(254mm x 30.48M)
Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Peressure Sensitive Adhesive is not applicable for TIC™800K series products.
Reinforcement:
TIC™800K series sheets are Kapton@reinforced.
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the
R&D, manufacture and sales of the thermal interface materials
(TIMs). We have rich experiences in this field which can support
you the latest, most effective and one -step thermal management
solutions. We have many advanced production equipments,full test
equipments and fully automatic coating production lines which can
support the production for high performance thermal silicone pad,
thermal graphite sheet/ film, thermal double-sided tape, thermal
insulation pad, thermal ceramic pad, phase change material, thermal
grease etc. UL94 V-0, SGS and ROHS are compliant.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in Vietnam.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just
contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data
sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM
D5470 are utilized to test the thermal conductivity.
