TIF030-05 Thermal Conductive Gel Thermal Conductive Silicon Filler
Liquid Heat Conducting Gel With Good Price
TIF030-05 is a soft silicone putty thermal gap filler,which blend with
exclusive formula,that offer superior thermal performance, and
compressibility. Due to TIF030-05 is made by high vicosity silicon
oil ,that can prevent thermal formula seprate from it. Besides
,compared with traditionally thermal pad, it can control bonded
shifiting issue much better.
TIF030-05 operation mold is simliar as grease ,such as silkprint and screen
print or automatic injected facility. TIF030-05 can be applied on
chip micro processor,PPGAs,Micro BGA package,BGA package,DSP
chip,LED lighting and other high power electric component.
Feature
> Thermal conductivity: 3.0W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
> Proven long-term reliability
Application
> Mass storage devices
> Automotive electronics
> Heat-sink & frame
> LED backlight module - LED lighting
> High speed hardware driver
> Micro heat pipe
> vihicel enginee controler
> Telecom industry
> Semiconductor automatic laboratory equipment.
| TIFTM030-05 Typical Properties |
| Property | Value | Test method |
| Color | Blue | Visual |
| Construction & Composition | Ceramic filled silicon material | ***** |
| Flow Rate @ 60psi；2.5mm orifice | 18 | Ziitek test method |
| Specific Gravity | 3.25g/cm³ | ASTM D297 |
| Thermal conductivity | 3.0W/mK | ISO 22007-2 |
| Thermal resistance @10psi (℃▪in²/W) | 0.075 | ISO 22007-2 |
| Thermal resistance @50psi (℃▪in²/W) | 0.060 | ISO 22007-2 |
| Continuous Use Temperature | -45 ~200°C | ****** |
| Shelf life @25℃; Original packaging | 6 minths | ****** |
| Flame Rating | 94-V0 | UL E331100 |
Packing details

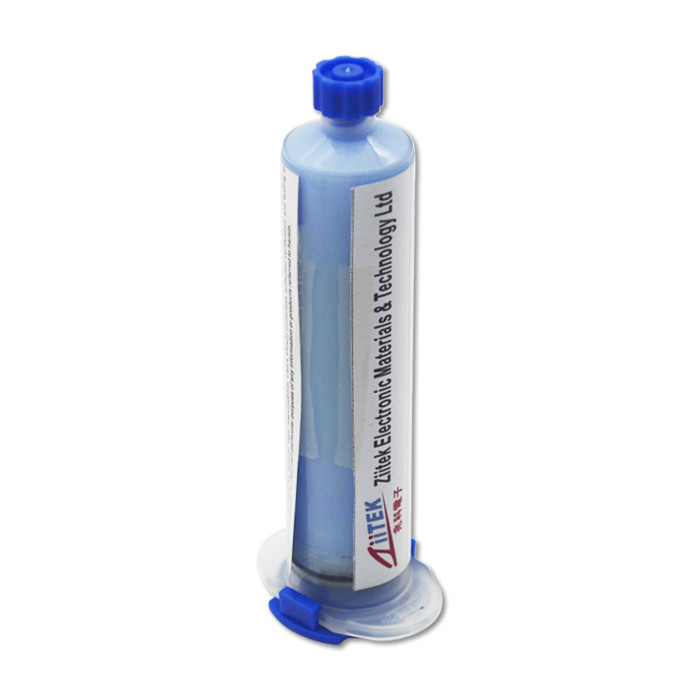

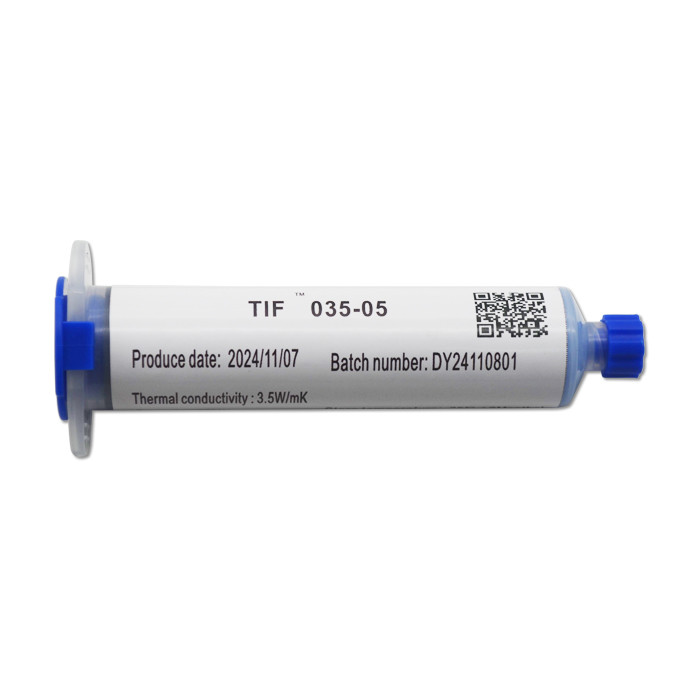

30 cc/pc, 98 pc/box;
300 cc/pc , 6 pc/box
We offer the custom packaged in syringes for automated despensing
applications.
Please contact us for confirming.
