TIG®680-15AB High Thermal Conductive Two Component Potting Silicone For
Industrial Control Transformer
Products description

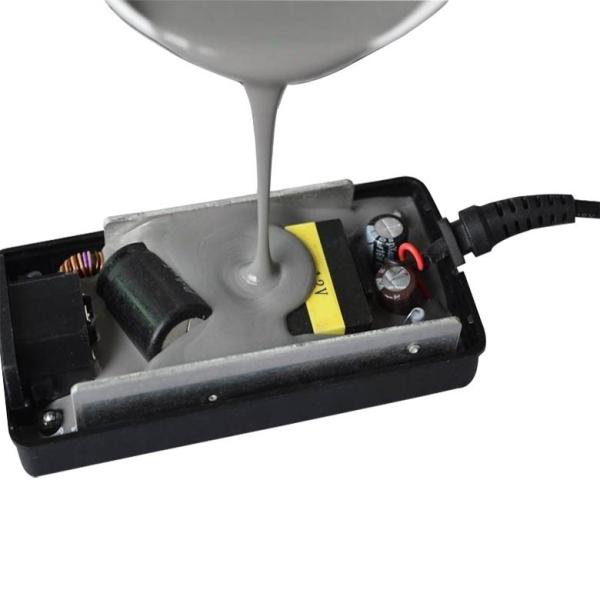

TIG®680-15AB is a two-part silicone potting adhesive with high thermal
conductivity, room temperature curable, long working time and fire
resistance. lt is especially suitable for capacitor, smal
electronic equipment sealing. Its flexible, elastic characteristics
enable it to provide cushioning for the materials it is coated
with. The lower viscosity allows the thermal potting adhesive to
cover the surface more fully, greatly increasing the efficiency of
heat transfer from the heating device or the entire PCB to the
metal case or diffusion plate, thus improving the efficiency and
service life of the electronic components.
Feature
> Good thermal conductivity: 1.5±0.2 W/mK
> Good insulation performance
> Good elasticity
> Lower shrinkage
> Low viscosity,easy gas emissions
> Good solvent resistance and waterproof performance
> longer working hours
> Excellent high and low temperature resistance
> No odor release during the curing process
Application
> Industrial control, transformer,coil,amplifier, high voltage
package,relay, high current junction box,etc
> Heat sink assembly, thermal sensor potting, thermal conductive
product potting
> Heat conduction between the battery cell and the cold tube
> LED and power drive potting
| Typical Properties of TIG®680-15AB Series |
| Material Properties(before Curing) |
| Property | Numerical | Test Method |
| Color / Part A | White | Visual |
| Color / Part B | Gray | Visual |
| Part A Viscossity(mPa·s) | 5000±1000 | GB/T 10247 |
| Part B Viscossity(mPa·s) | 5000±1000 | GB/T 10247 |
| Mix Ratio | 1:1 | Ziitek Test Method |
| Shelf life | 6 Months (Unopened) | Ziitek Test Method |
| Cure Schedule |
| Pot Life @25℃ | 30~45 mins | Ziitek Test Method |
| Cure @70℃ | 20~30 mins | Ziitek Test Method |
| Cure Material Properties |
| Color | Gray | Visual |
| Hardness (Shore A) | 45±5 | ASTM D2240 |
| Density (g/cc) | 2.35±0.1 | ASTM D792 |
| Recommended Operating Temp (℃) | -45~200 | Ziitek Test Method |
| Flame Rating | V-0 | UL 94 |
| Thermal Conductivity (W/mK) | 1.5±0.2 | ASTM D5470 |
| Breakdown Voltage(V/mm) | ≥8000 | ASTM D149 |
| Dielectric Constant@1MHz | 5.0~7.0 | ASTM D150 |
| Volume Resistivity (Ohm-cm) | 1.0*1014 | ASTM D257 |
Storage
1. Store the potting compound in the original unopened container;
2. Store in a cool and dry place to ensure the proper shelf life.
Company profile
Ziitek company is a high-tech enterprise which dedicated to the
R&D, manufacture and sales of the thermal interface materials
(TIMs). We have rich experiences in this field which can support
you the latest, most effective and one -step thermal management
solutions. We have many advanced production equipments,full test
equipments and fully automatic coating production lines which can
support the production for high performance thermal silicone pad,
thermal graphite sheet/ film, thermal double-sided tape, thermal
insulation pad, thermal ceramic pad, phase change material, thermal
grease etc. UL94 V-0, SGS and ROHS are compliant.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in Vietnam.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat
dissipation. Please tell us your detailed applications and the
power, so we can recommend most suitable thermal conductive
materials.
